R&R – CMM & Vision Fixturing
Product Type: Vision Measurement
Manufacturer: R&R Sales and Engineering
Description
FIXTURING PROBLEMS?

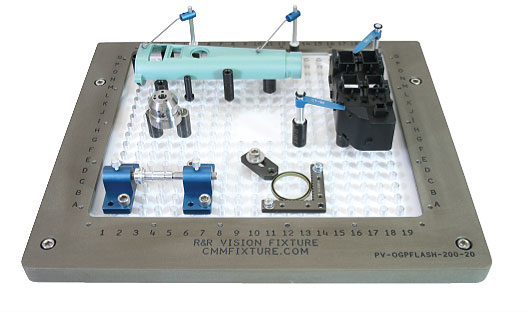

R&R has the solution for either CMM or Vision Sytsems. We can improve your productivity, reduce fixturing cost, and help your company to be more competitive in today’s manufacturing world by using our R&R modular fixtures or by building a specialized fixture that is designed specifically for your part’s application.
Specifications

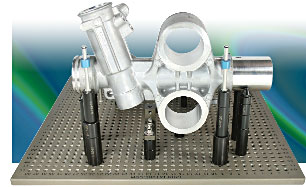

CMM Plates are available in sizes from 6.0" x 6.0" (150mm x 150mm) up to 60” x 120” (1500 mm x 3047mm) in a single fixture plate. For even larger applications, we can use multiple plates to create any size. Please view our listing of plate sizes that fits your specific CMM system. A kit includes one of the component sets below (A, B, or C) and one base plate with 1/4-20 threaded holes .50" on center (choose from plate sizes listed). To determine the part number for the desired kit, select a base plate size and a component set. Example: A 1/4-20 clamping kit with a .75” x 24" x 24" base plate and component Set B is part # KC-C3B-20.0
