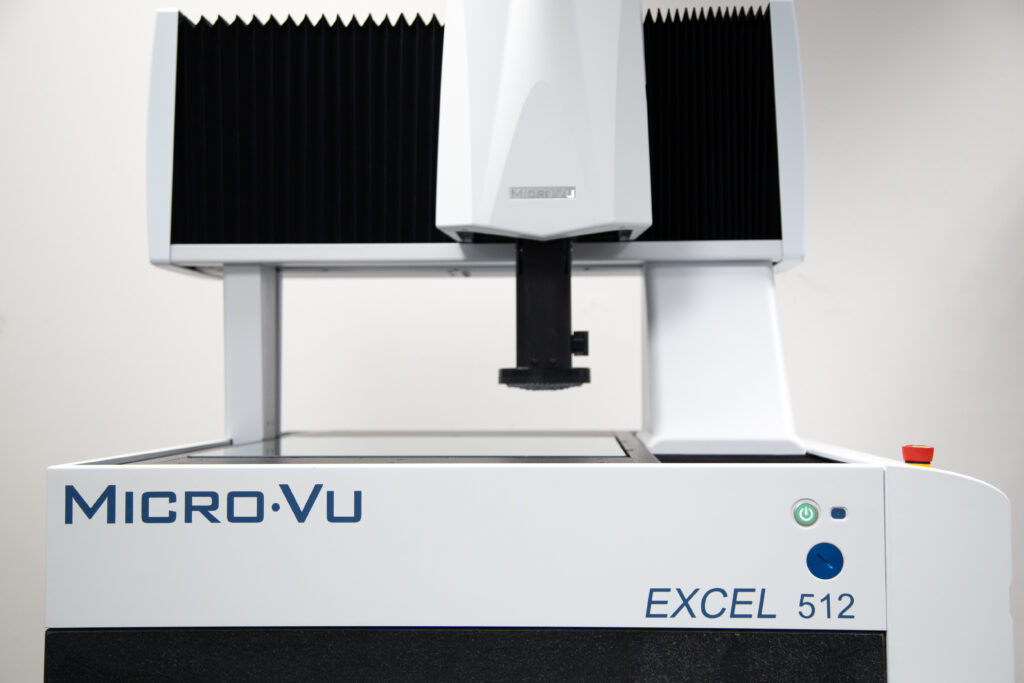

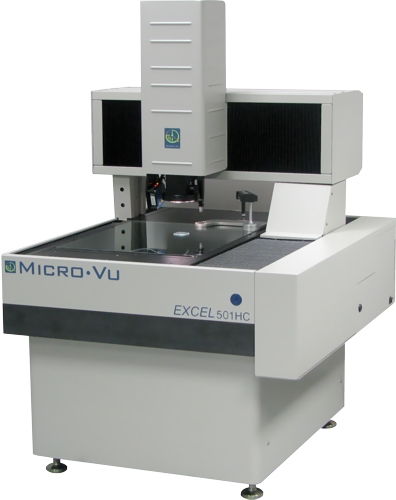

Micro-Vu Excel Vision Measuring Centers

Product Type:
Manufacturer:


Description

The Excel Measuring Centers are high precision measurement solution for large parts. Complete with InSpec Metrology Software, programmable zoom lens, and servo motion control, the Excel machines handle parts up to 2.5 meters (nearly 100 inches) with ease.

Excel systems are also commonly used with multiples of smaller parts nested in a fixture. Operators load parts and start a measurement program. The machines can run for hours while operators work on other inspection and qualtiy control tasks.




Specifications

  • Powerful Machine Vision System
  • All Systems are Touch Probe, Laser, & Rotary Ready
  • Programmable 12x Zoom Lens
  • 42 Channel Lighting System
  • "Mono-Rail" Bearing Design
  • Fast, Accurate Z Measurements with Vision
    • Better than many laser systems
  • Fast!!! Servo Motor Control
  • Extra Large Capacities
    • 500 x 400 x 160 mm
    • 500 x 400 x 250 mm
    • 650 x 650 x 160 mm
    • 650 x 650 x 250 mm
    • 650 x 650 x 400 mm
    • 1050 x 1050 x 160 mm
    • 1050 x 1050 x 250 mm
    • 1050 x 1050 x 400 mm
    • 1650 x 1050 x 160 mm
    • 1650 x 1050 x 250 mm
    • 1650 x 1050 x 400 mm
    • 2000 x 1250 x 200 mm
    • 2500 x 1600 x 200 mm
  • Automated Platen available on 650 x 650 Systems
