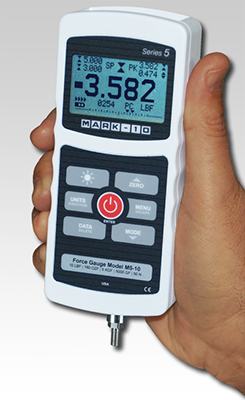

Series 5 Advanced Digital Force Gages
Product Type: Force and Torque
Manufacturer: Mark-10
Description
Series 5 advanced digital force gauges are designed for tension and compression force testing in numerous applications across virtually every industry, with capacities from 0.12 lb to 500 lb (0.5 N to 2500 N). The gauges feature an industry-leading sampling rate of 7,000 Hz, producing accurate results even for quick-action tests. Accuracy is ±0.1% of full scale, and resolution is 1/5000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or data collectors via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
On-board data memory for up to 1,000 readings is included, as are statistical calculations with output to a PC. Integrated set points with indicators and outputs are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 200% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
The Series 5’s averaging mode addresses the need to record the average force over time, useful in applications such as peel testing, while external trigger mode makes switch activation testing simple and accurate. An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 5 force gauges are directly compatible with Mark-10 test stands, grips, and software.
Series 5 gauges include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data from Series 5 gauges. Data saved in the gauge’s memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.
Specifications
Accuracy: ±0.1% of full scale
Sampling Rate: 7,000 Hz, pulse response of 1/3,500 sec. minimum
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life: Backlight on / off: up to 7 / 24 hours of continuous use
Outputs: USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog: ±1 VDC, ±0.25% of full scale at capacity,
General purpose: Three open drain outputs, one input.
Set points: Three open drain lines.
Configurable settings: Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration Safe overload: 200% of full scale (display shows “OVER” at 110% and above)
Weight (lb [kg]): M5-012 - M5-100: 1.0 [0.45], M5-200 - M5-500: 1.2 [0.54]
Load cell deflection: All models 0.010 [0.25], except 0.005 [0.13] for M5-012
Included items: Carrying case, chisel, cone, V-groove, hook, flat, extension rod, AC
adapter, battery, quick-start guide, USB cable, resource CD (USB
driver, MESURTM Lite software, MESURTMgauge DEMO software,
user’s guide), NIST-traceable certificate of calibration with data.
Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
Warranty: 3 years (see individual statement for further details)
