Starrett AccuBore Bore Gages
Product Type: Bore Gages
Manufacturer: Starrett
Description

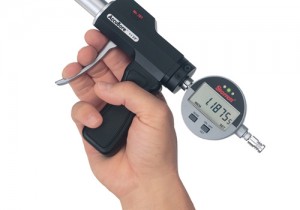

AccuBore is a high-quality, trigger-activated three-point contact bore gaging system with extended range. Its convenient single-hand operation provides speed and control. Simply squeeze the trigger, insert the gage into the bore and release the trigger for an instant reading from the large, easy-to-read digital display.
Specifications
- Single-hand operation with right-and left-hand viewing flexibility
- Large, easy-to-read display
- Enhanced wear life with carbide-faced contacts – available from ½” to 8”
- True alignment with mechanically-driven parallel anvils
- Resolution: .0005” (.001mm)
- Accuracy of up to .00015” (.004mm)
- Preset and preset recall
- Hold, max/min and zeroing capabilities
- Blind bore measurement is standard from .50” (12.7mm) and above
- Specialized heads available for thread, groove and other non-standard measurements on request
- Output capability for Statistical Process Control (SPC) analysis via devices such as Starrett 772 Collector or 761 Multiplexer, or download of data directly to a PC by an RS232 connection. (Direct to PC cable available upon request)
