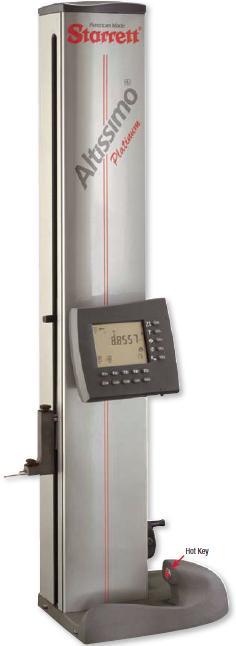

Starrett Altissimo Height Gage
Product Type: Height Gages
Manufacturer: Starrett
Description
Description
Altissimo Height Gages are innovative, easy-to-use, and loaded with Starrett-exclusive functions that allow you to easily program measuring routines that run smoothly and reliably.
Features:
• A unique, ergonomically shaped base, hardened and ground, that fits your grip just right to easily move the gage and press the hot key D or (ID/OD, Center, Preset
• Hot key allows you to select measuring results on the fly
• 0-24″ Measuring Range
• Smart probe that can measure I O D without attachments
• Electronically adjusted probe force
• Large, easy-to-read interactive LCD with unique scanning meter for monitoring probe position
• Electronically adjustable beeper volume
• Bold screen icons indicate the current routine
• Three electronically adjustable resolutions
• Retains the last calibrated diameter of the measuring probe, even after the gage is shut down
• Dynamic bi-directional probing with point and scan modes
• Easy operation with speed wheel, which also has fine-adjust feature
• Locking mechanism for scribing
• Five measurement modes: TIR, Max/Min, Continuous Display)
• Instant inch/millimeter conversion
• Two selectable Datums and Hot Key
• Auto Power Off after two hours with retention of probe calibration
• Automatic calculation of eight measurement routines:
- Center
- Diameter
- Height
- Max
- Min
- TIR
- Distance to last feature
- Distance between last two points
• Rechargeable NiMH batteries with 100 hours of continuous life
• Seven setup functions:
- Probe Calibration (2)
- Beeper Volume
- Display Resolution
- Probe Force Adjustment
- Printer On/Off
- Force Calibration
• Optional probe kit features a variety of probes for many applications
• Gages include carbide probe, probe holder and probe calibration block
• RS232 data output port
• Works well with Starrett Datasure®Wireless Data Collection Systems
• Starrett capacitive measurement system ensures the accuracy and reliability you
expect
• Excellent value – loaded with features and competitively priced
