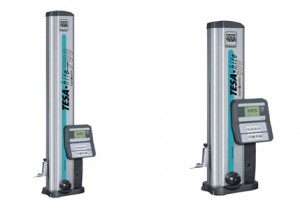

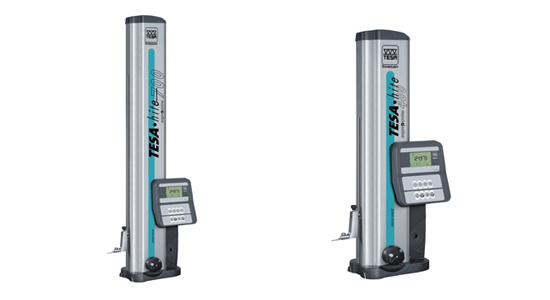

TESA-HITE 400 MAGNA
Product Type: Height Gages
Manufacturer: Brown & Sharpe
Description
Made to withstand severe workshop conditions. Shop proof technology. Long measuring span and rugged design. Fully protected against Water, Oils and Dust
Specifications
- 16" (415 mm) measuring range -
- Electronics completely protected against liquids or dust penetration -
- Automatic diameter measurement using TESA's patented system for detecting culmination point -
- TESA magnetic measuring system (TESA Magna µ System Patented) -
- Compatible with TESA MICRO-HITE accessories, including measuring inserts and holder -
- SCS calibration certificate delivered with each instrument
- Application range with standard insert holder 00760143: 22 in/570 mm -
- Application range with insert holder 00760057: 0 to 24 in /0 to 625 mm -
- Application range with insert holder S07001622: 31 in /795 mm - Max. perm. Error: < 8 µm / < 0.0003 in -
- Repeatabiity: 2s=<3 µm / 2s=<0.00015 in (flat surfaces)or 2s=<5 µm / 2s=<0.00020 in (inside bores) -
- Resolution: .0001 / .0002 / .001 in or 0.001 / 0.005 / 0.01 mm
