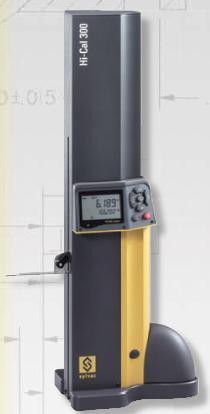

Fowler / Sylvac Height Gage
Product Type: Height Gages
Manufacturer: Fowler
Description
Description
Available in 6” & 12” models
Features:
• Direct RS-232 output
• The Sylvac capacitive system is exceptionally fast (60″ per second
traverse) and is the most reliable and maintenance free system ever
created for measurement.
• Scale not affected by oil, dust, chips, magnetism, shock, etc.
• True inch/metric conversion
• Resolution: .0005″/.01mm
• Indicator post included
on scriber .196″/5mm
• Repeatability: .0008″/20μm (±2s)
• Base Size: 2.55″ wide X 4.40″ length X 1.24″ high
• Beam thickness: .785″ X .235″
